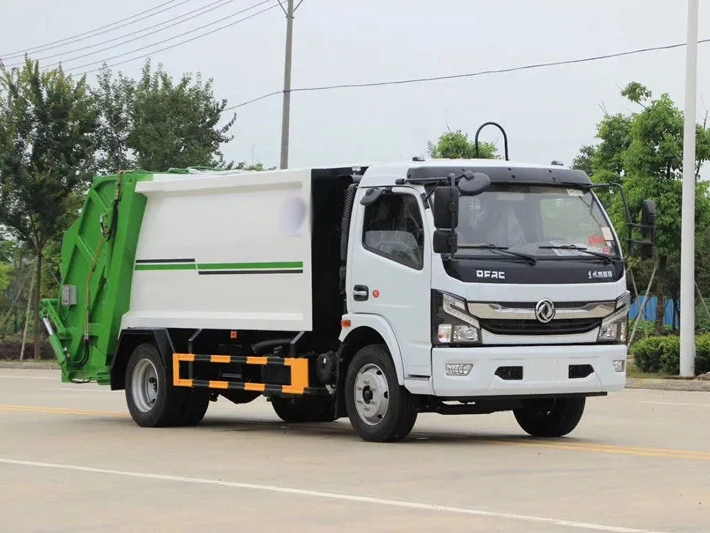

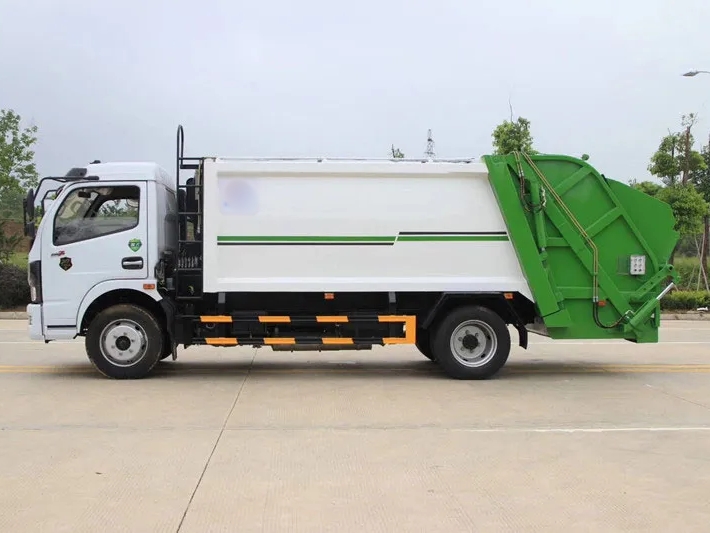

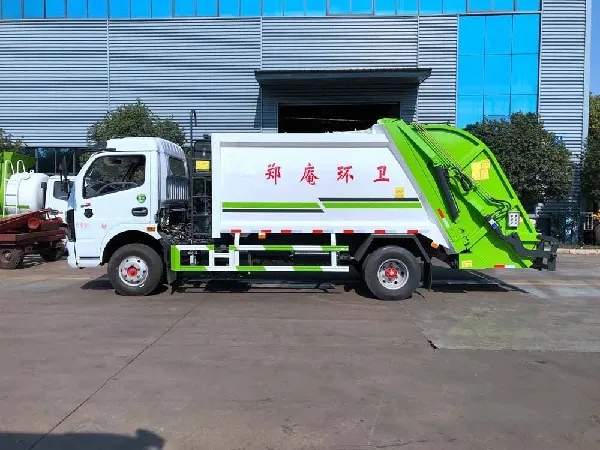

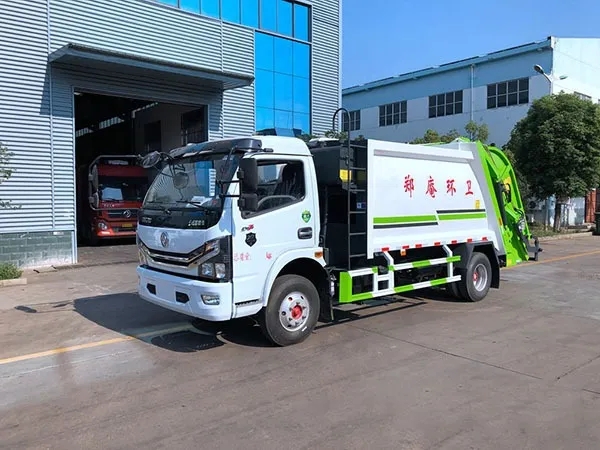

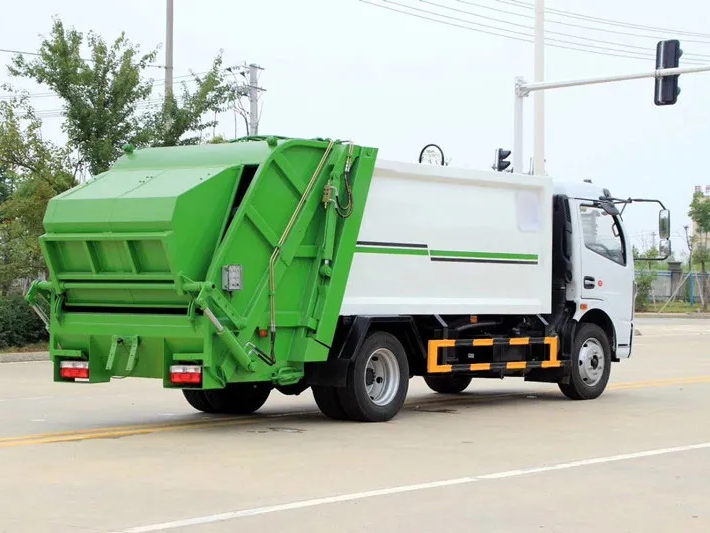

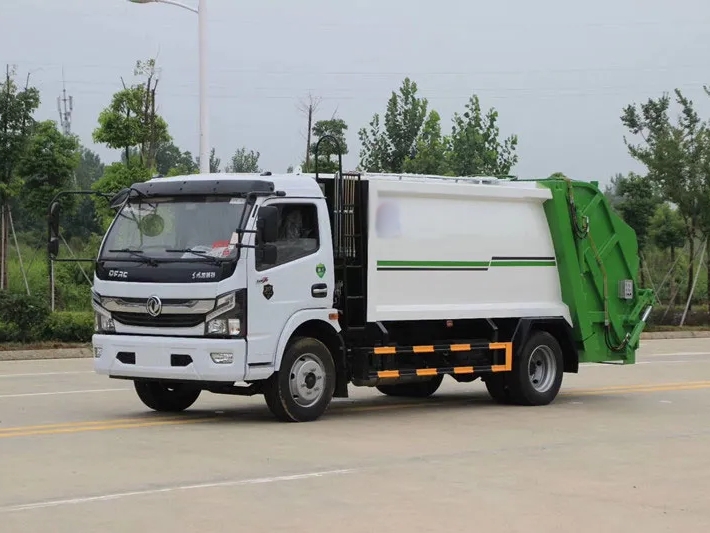

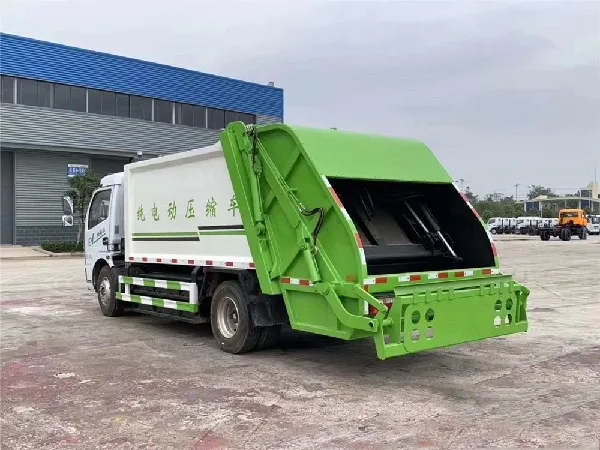

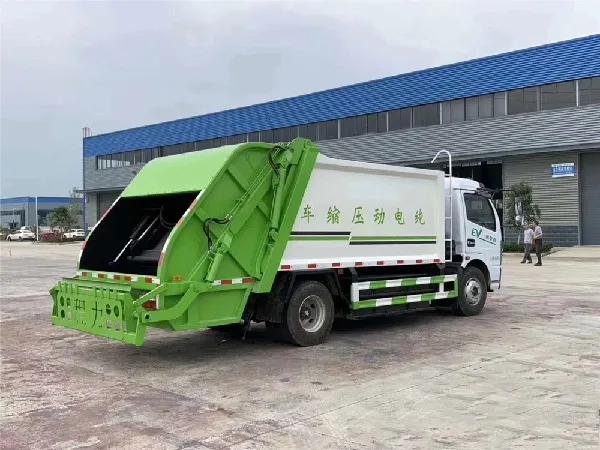

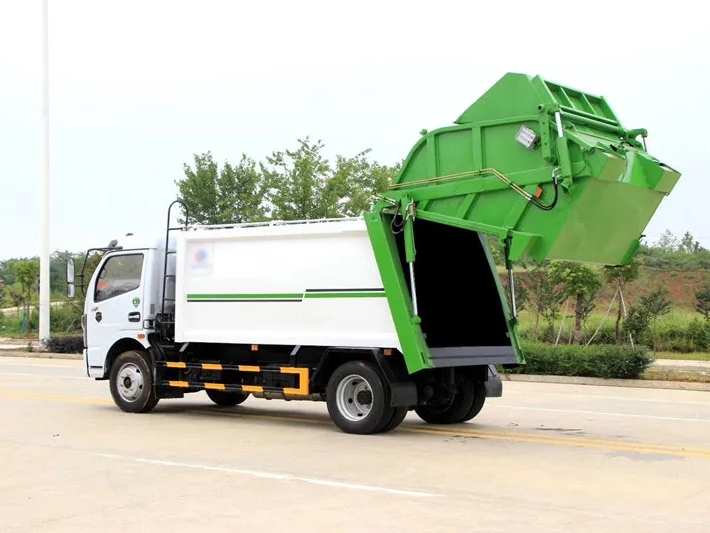

8m³ Dongfeng D7 compressed garbage truck

The introduction of 8m³ Dongfeng D7 compressed garbage truck:
Chassis configuration:Adopting the new Dongfeng D7 series cab, with a wheelbase of 3800mm, equipped with a National VI Dongfeng Chaochai 170 horsepower engine/Guangxi Yuchai 140 horsepower engine, a Wanliyang 6-speed gearbox, a 5.5T rear axle, 245/70R19.5 vacuum tires, air brake, cut-off brake, electric window, central locking, multifunctional steering wheel, daytime running LED crystal lights, Dongfeng original air conditioning, ABS, GB7258 new regulations.
Upper configuration: The material of the compartment is Q345 manganese steel, with a thickness of 4mm on the edges and 4mm on the bottom. The compartment is curved and has a larger capacity of 8 cubic meters. Bidirectional compression structure, with dual sewage tanks on the tail side, Hubei Boli or Yantai Future oil cylinder, Japanese Huarka sealing ring, Hefei Changyuan gear pump, Yangzhou Zhongmei multi way valve, Zhonglian style PLC, integrated operation mode of hand and electricity, with cab operation

Product Name： 8m³ Dongfeng D7 compressed garbage truck
Driving Type： 4x2
Weight /Volume：
Garbage container volume(cbm)： 8

Product Features

Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.

Product parameters

Product Name	8m³ Dongfeng D7 compressed garbage truck
Driving Type	4x2
Weight /Volume
Garbage container volume(cbm)	8
Rated payload weight(kg)	2405
Dimensions
Wheelbase(mm)	3800
Overall Dimension(mm)	7340×2350×2800
Engine
Engine brand & model	Yuchai, YCY24140-60
Displacement(L)/Power(kw)	2.36L/103KW
Chassis
Axle Quantity	2
Transmission Type	6 forward gears and 1 reverse gear
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	245/70R19.5, 6 with a spare
Cab
Standard configuration	D7 series cab
Air conditioning	YES
Performance parameter
Garbage container material	Q345 manganese plate and carbon steel plate
Standard configuration	1. Pressure filling mechanism 2. Feeding device 3. Lift the pressure filling device 4. Sewage collection tank 5. Rear electronic control operation 6. Front manual operation
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
