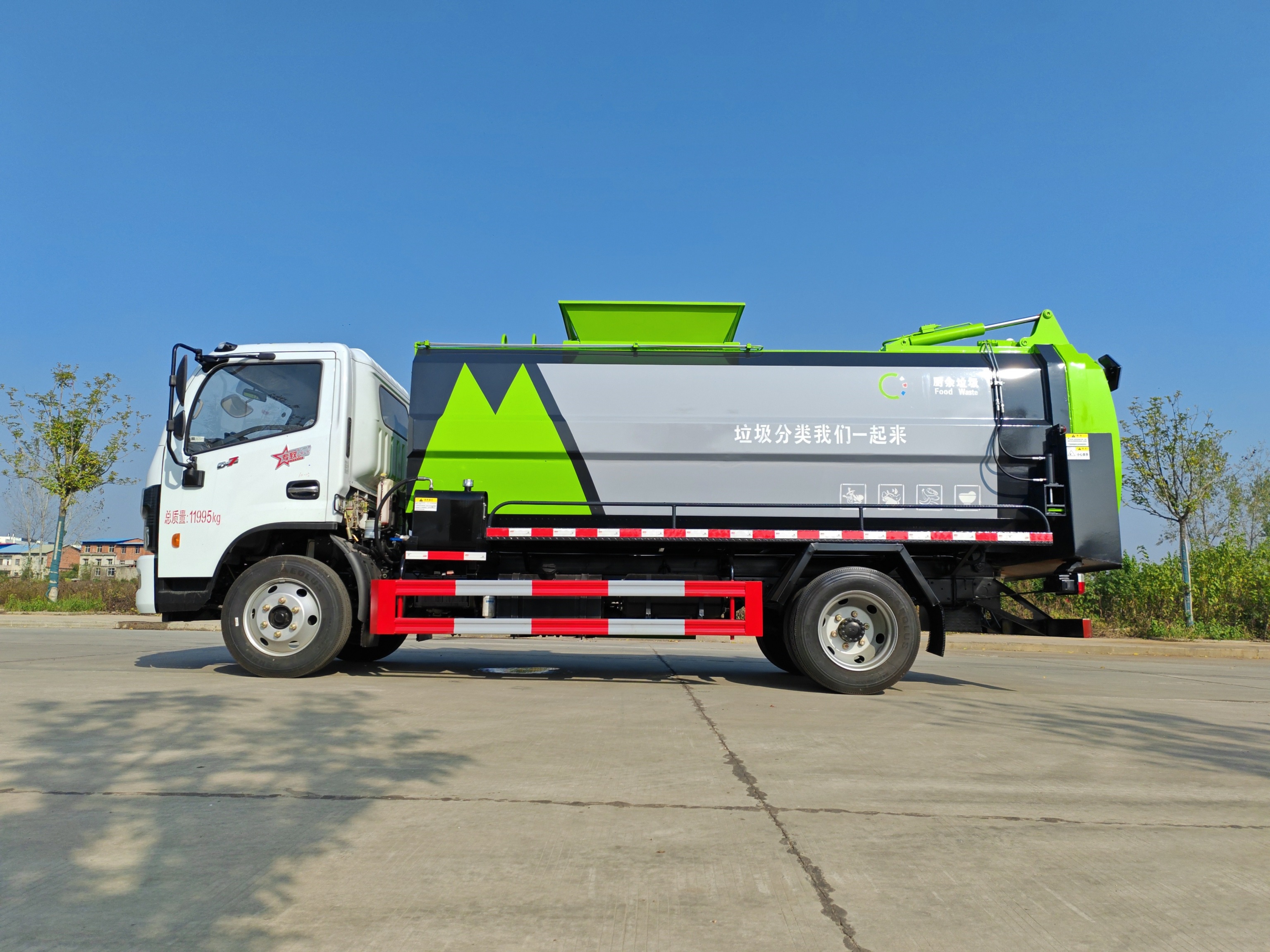

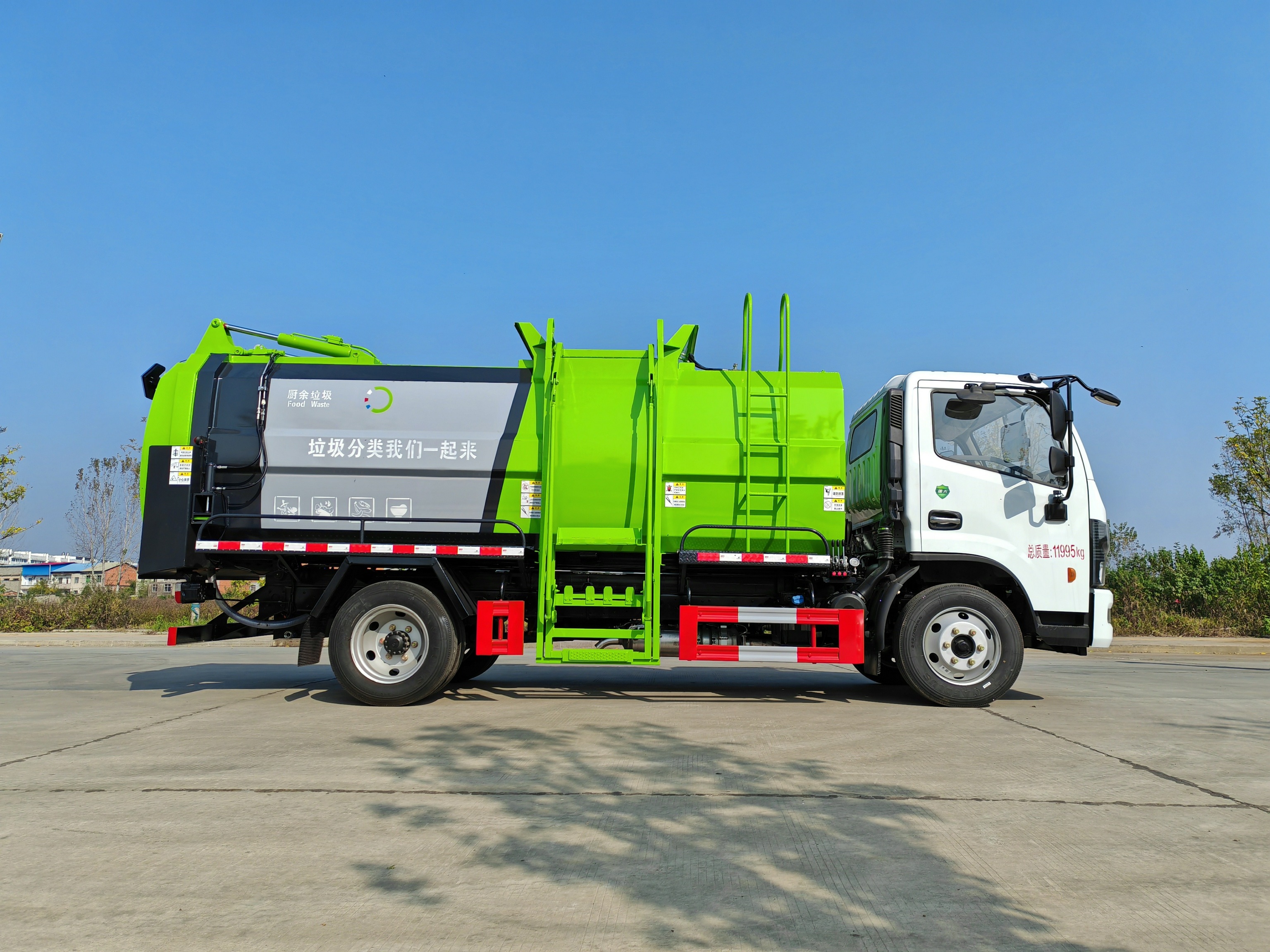

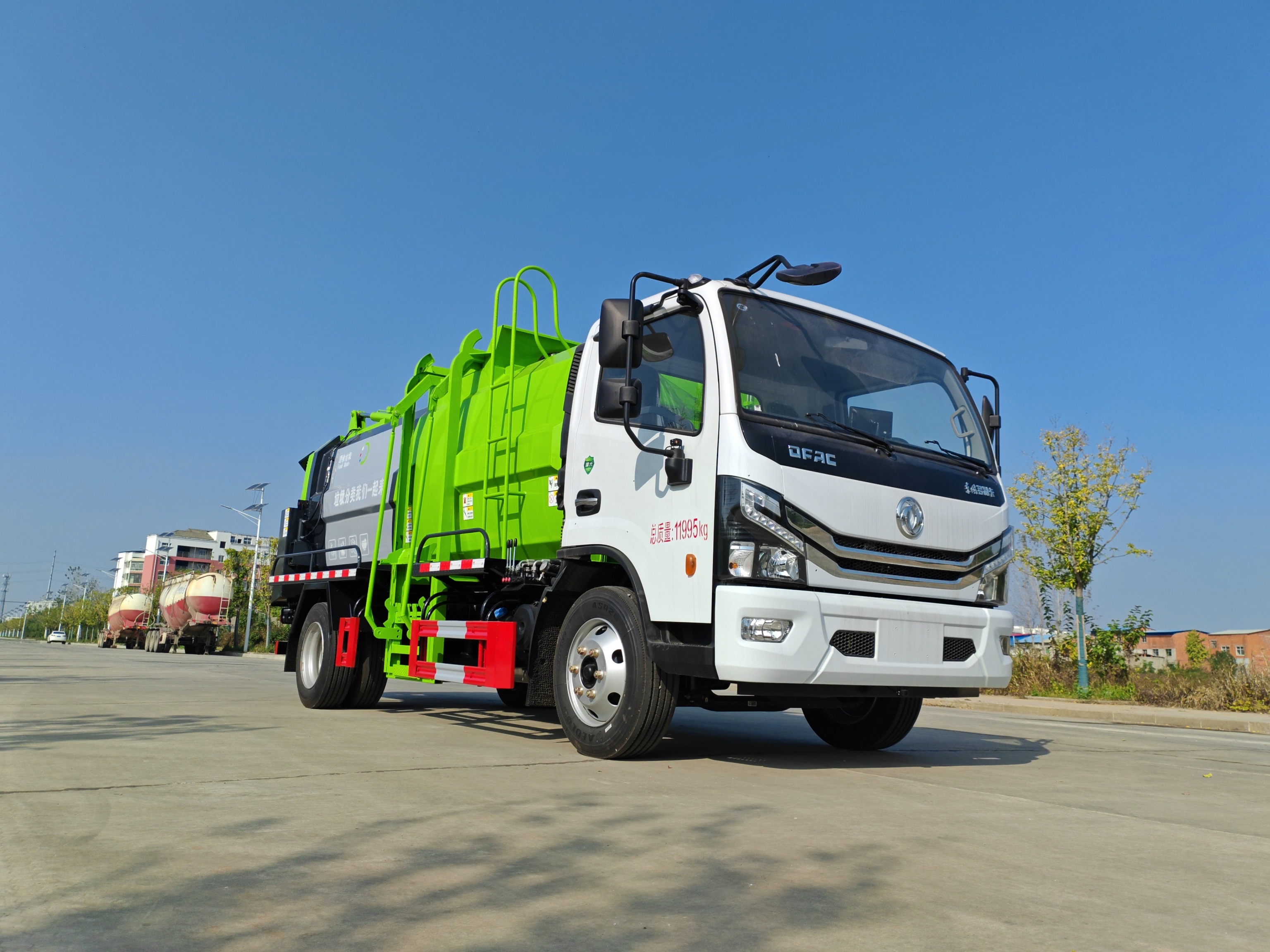

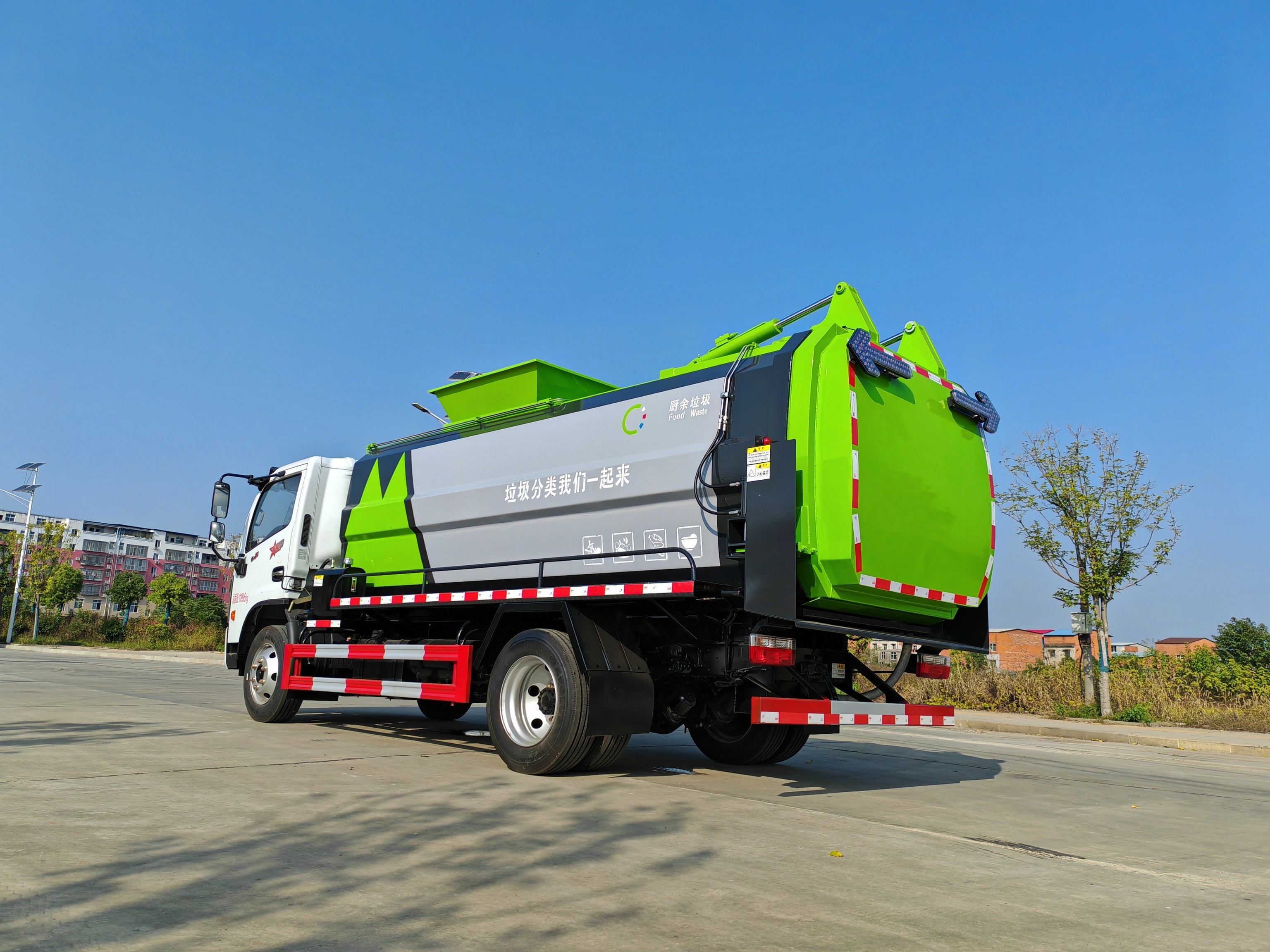

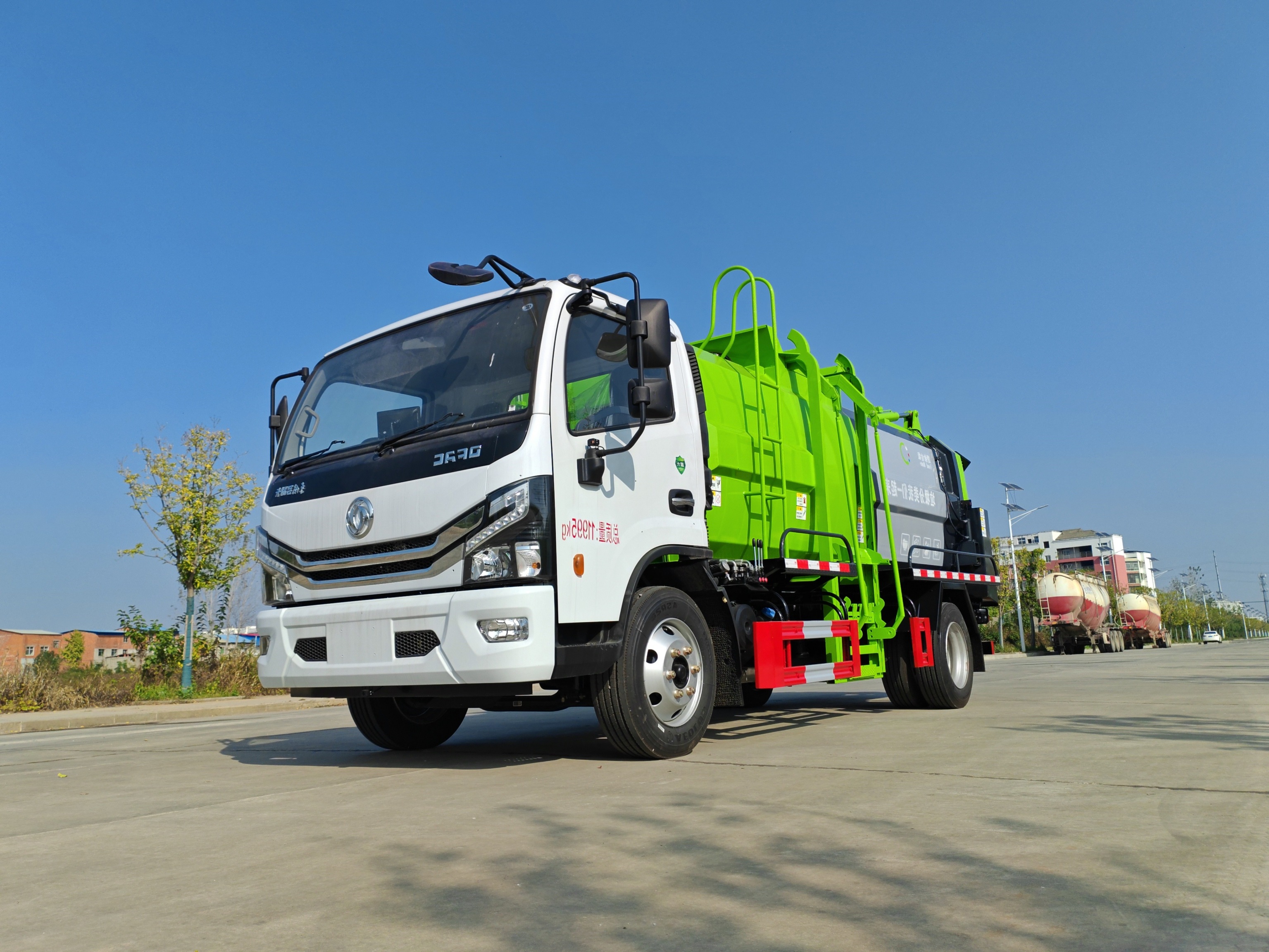

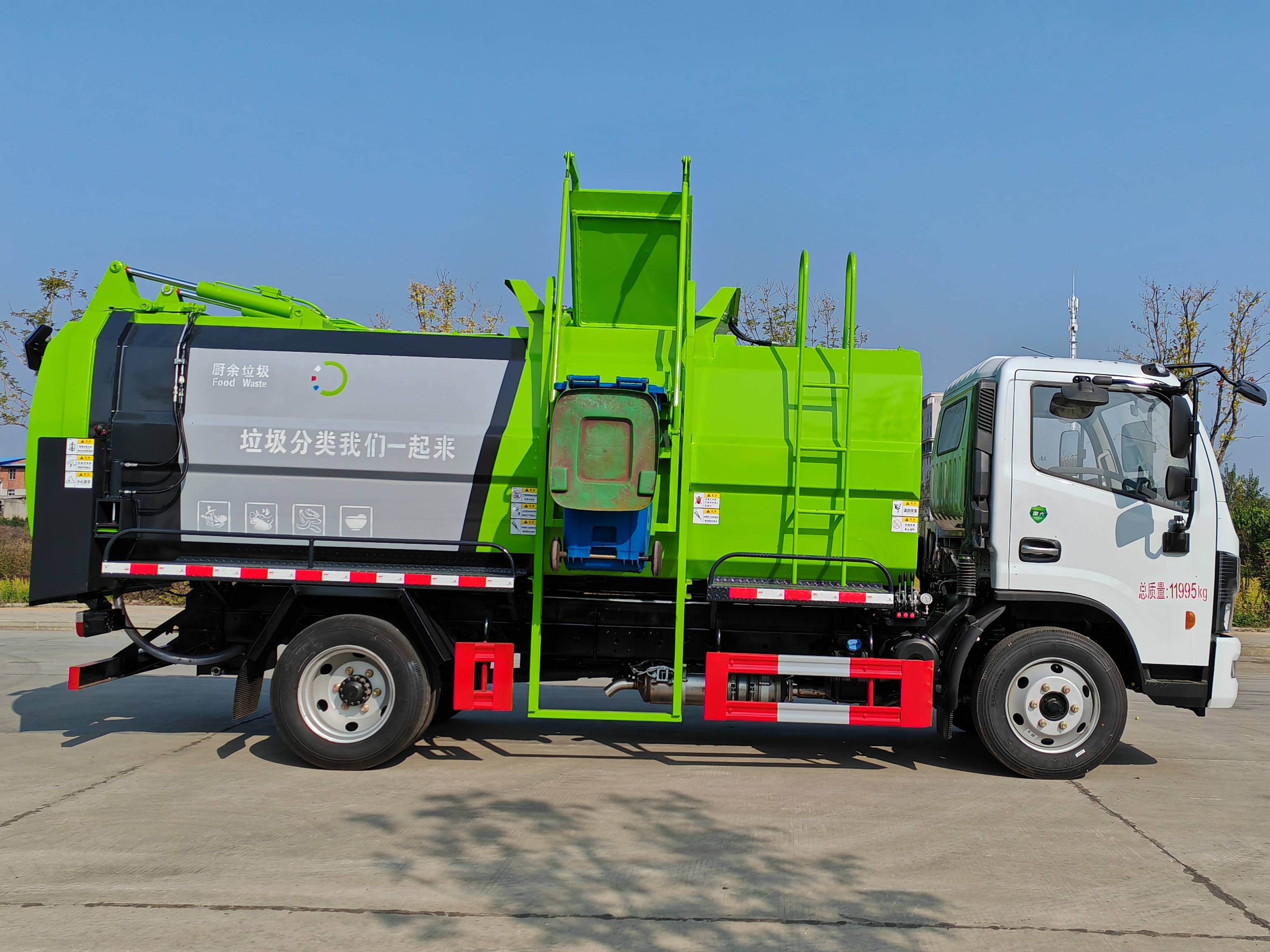

Dongfeng D7 4×2 Kitchen Waste Truck

Chassis configuration:
Dongfeng Dorica original chassis, 3800mm wheelbase, YCY30165-60 engine, Wanliyang 6-speed transmission, 2030 single row cab, 2.7T front axle, 5.5T rear axle, 245 vacuum tires, air brake, air conditioning, electric doors and windows, central locking.

Product Name： Dongfeng D7 4×2 Kitchen Waste Truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 11995(Kg)
Curb weight(Kg)： 6150(Kg)

Product Features

The types of garbage trucks include:Kitchen waste truck, compression garbage truck, self dumping garbage truck, swing arm garbage truck, pull arm garbage truck, hook arm garbage truck (box detachable garbage truck), sealed garbage truck, hanging bucket garbage truck (self loading and unloading garbage truck)

Kitchen waste truck,also known as meal waste truck, kitchen waste truck or swill truck, is a type of garbage truck used for collecting and transporting household waste, food waste (swill) and urban sludge.

Installation configuration of Dongfeng D7 4×2 Kitchen Waste Truck

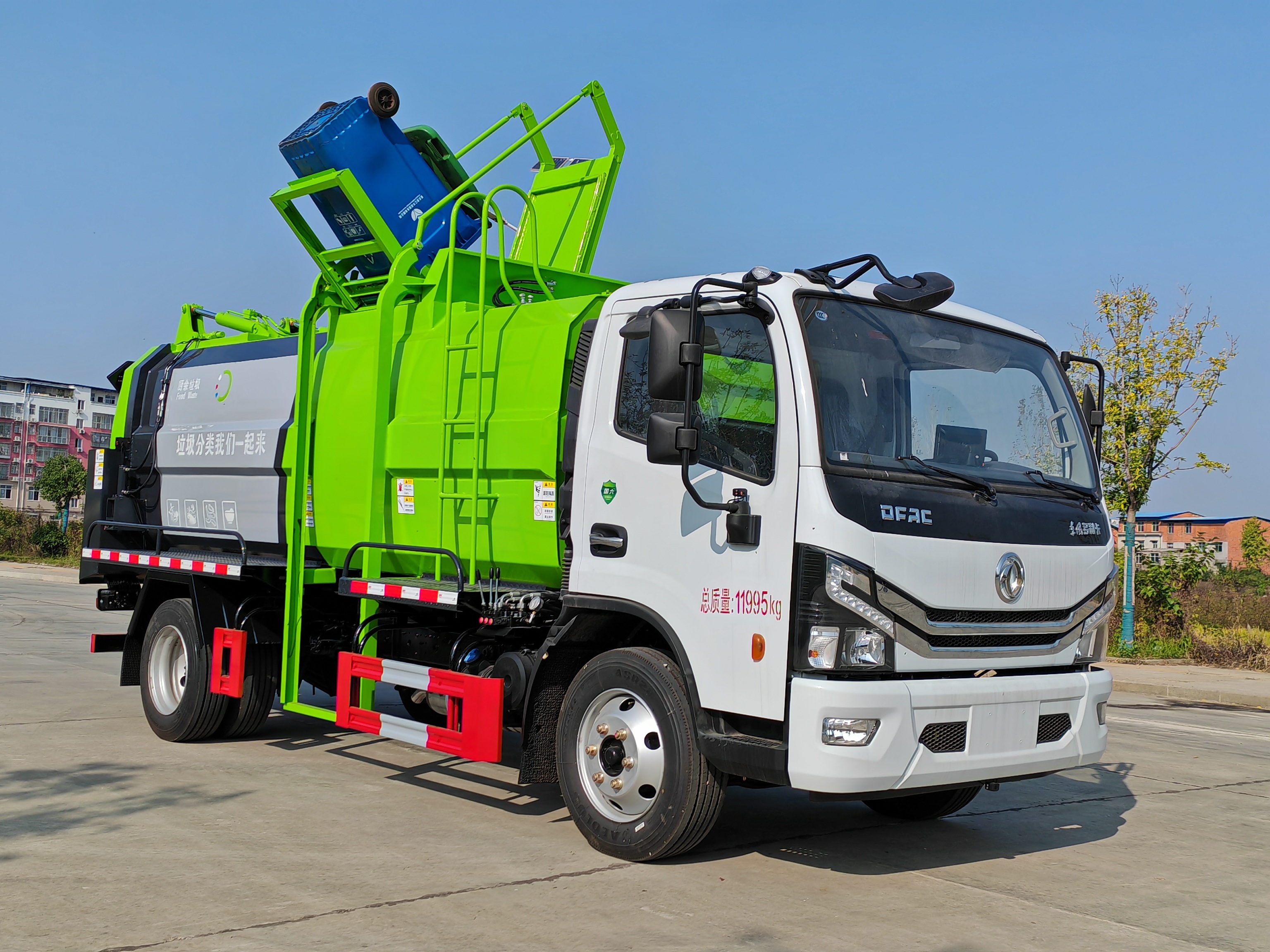

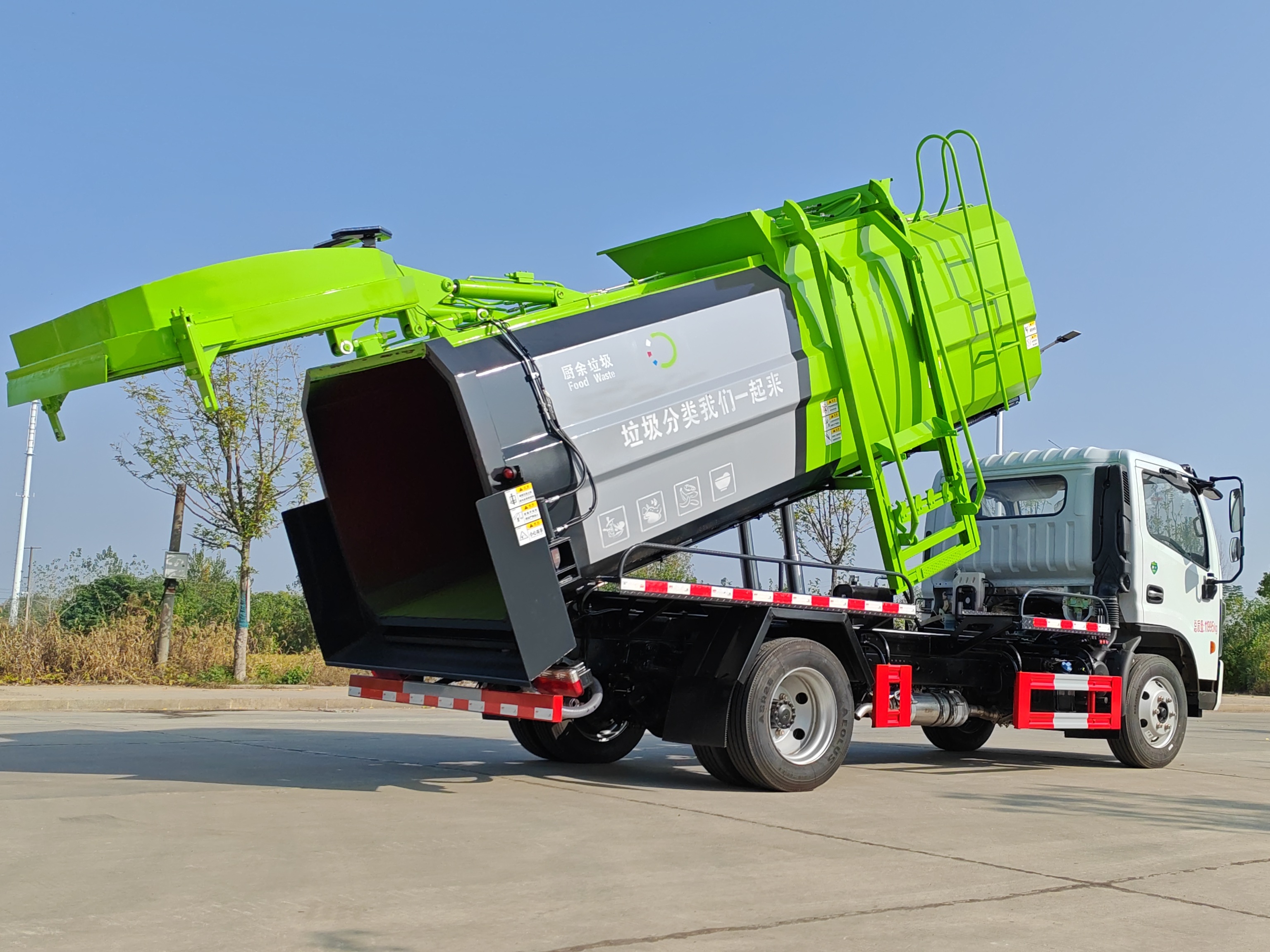

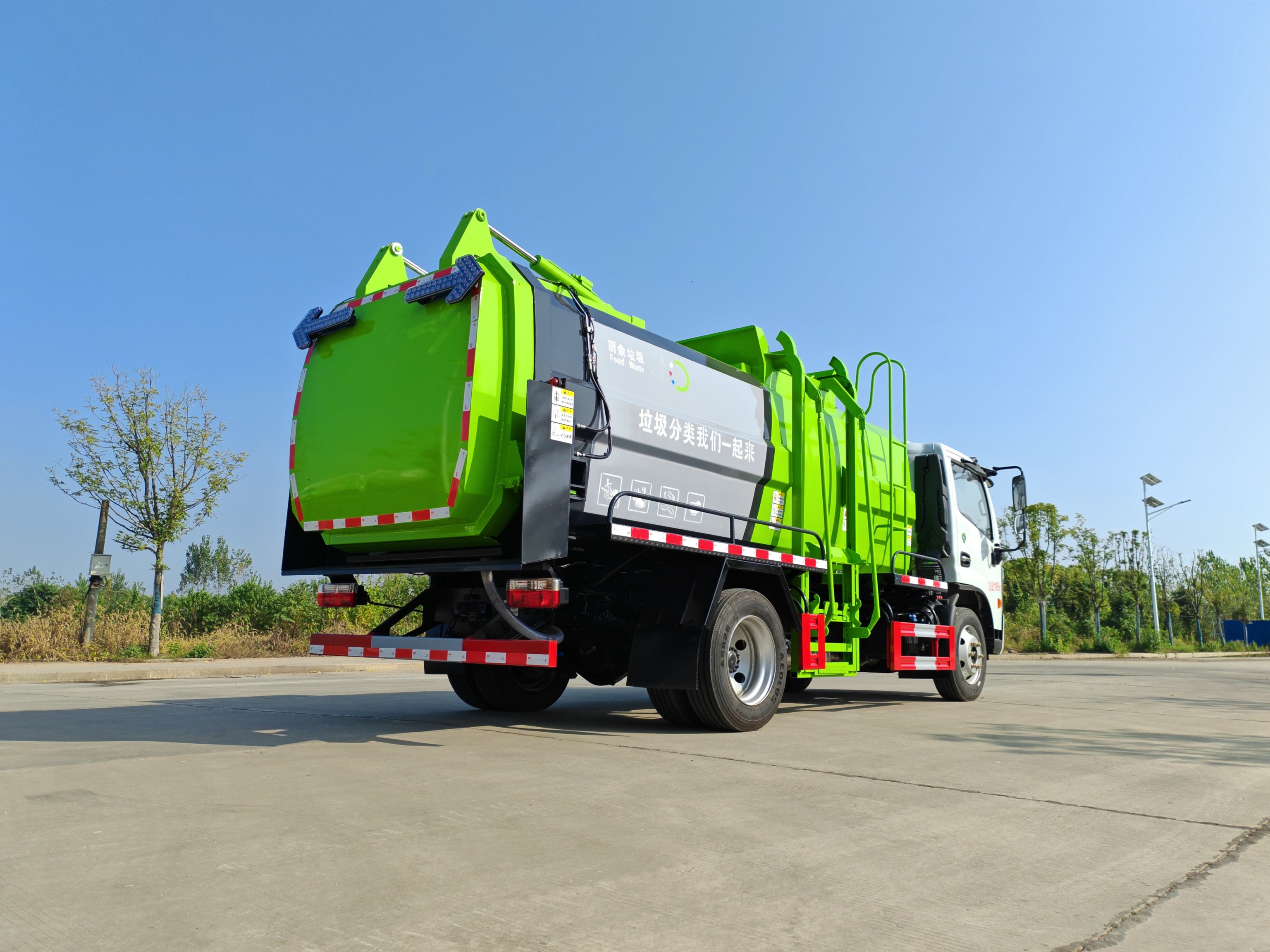

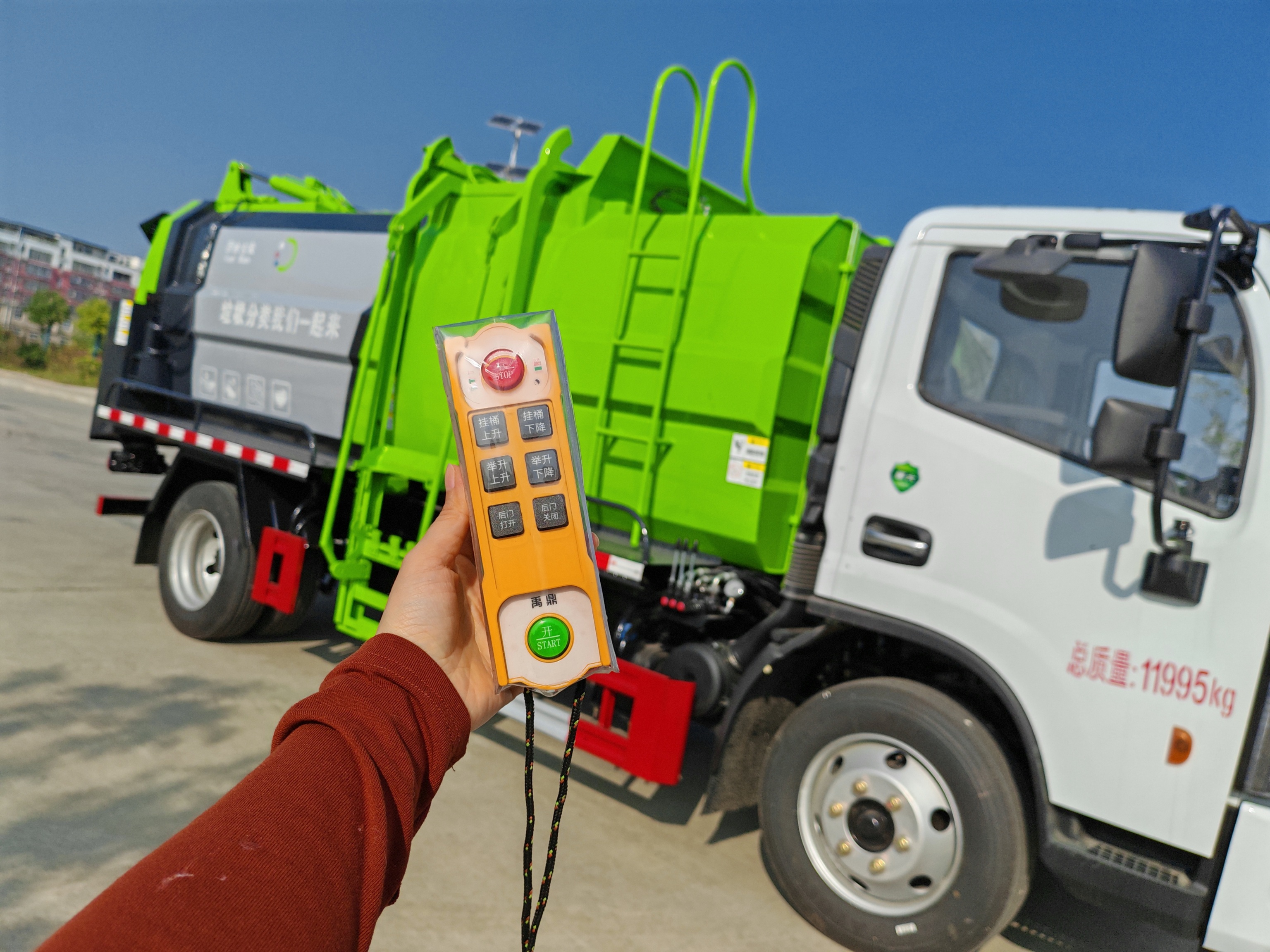

Made of Q710 high-strength steel, with sides measuring 4mm and bottom measuring 5mm, and a large capacity. The reinforced square tank body adopts a well-known domestic brand hydraulic system (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen and kitchen use, Zhejiang Jiashan power take-off), ① hydraulic opening and locking of the back cover, with a sealing strip on the back cover and adjustable pin type hydraulic locking to ensure no water leakage. ② Pull rod elevator, capable of hanging 120L/240L standard plastic trash cans Mid mounted double top lifting unloading, the unloading angle can be adjusted according to demand Having a wireless remote control is more convenient for operation.
Note: Kitchen waste trucks can be equipped with functions such as dry wet separation, high-pressure cleaning, electronic control, heating, etc. according to usage needs

Product parameters

Product Name	Dongfeng D7 4×2 Kitchen Waste Truck
Driving Type	4×2
Gross vehicle weight(Kg)	11995(Kg)
Curb weight(Kg)	6150(Kg)
Rated weight(kg)	5650,5715(Kg)
Wheelbase(mm)	3800(mm)
Overall Dimension(mm)	6860,6360×2360×2950(mm)
Engine brand & model	YCY30165-60, Yuchai 165hp
Displacement(L)/Power(kw)	2.97L/121KW
Axle Quantity	2
Transmission Type	Wanliyang 6-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	245 vacuum tires, 6+1 spare
Cab	Dongfeng D7 cab, 2030 single row cab, air conditioning, electric doors and windows, central locking system.
Volume(m³)	10m³
Tank body	Reinforced square tank body, Q710 high-strength steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
