Qingling Isuzu 4t foam fire truck

Product description

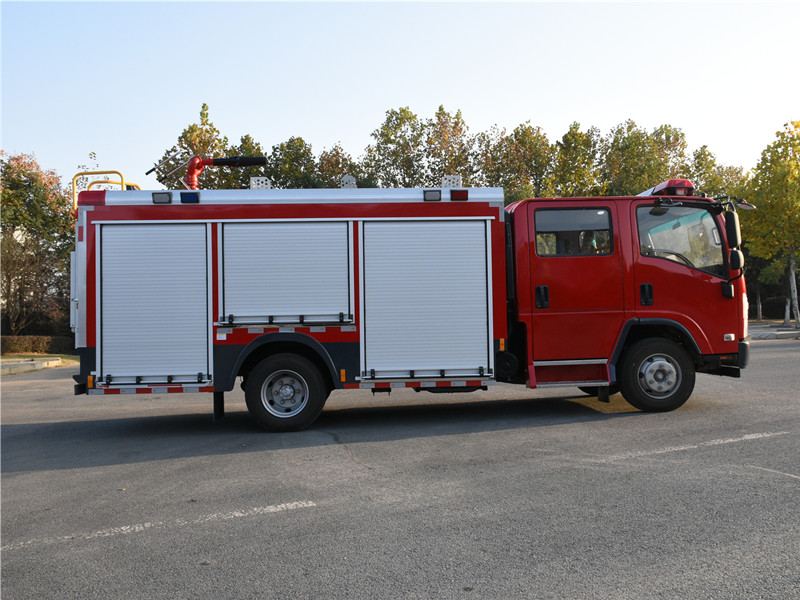

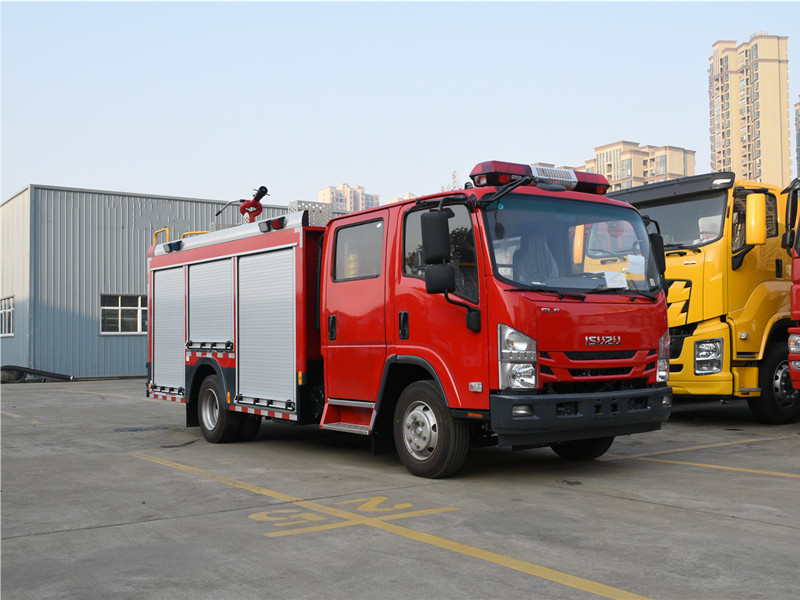

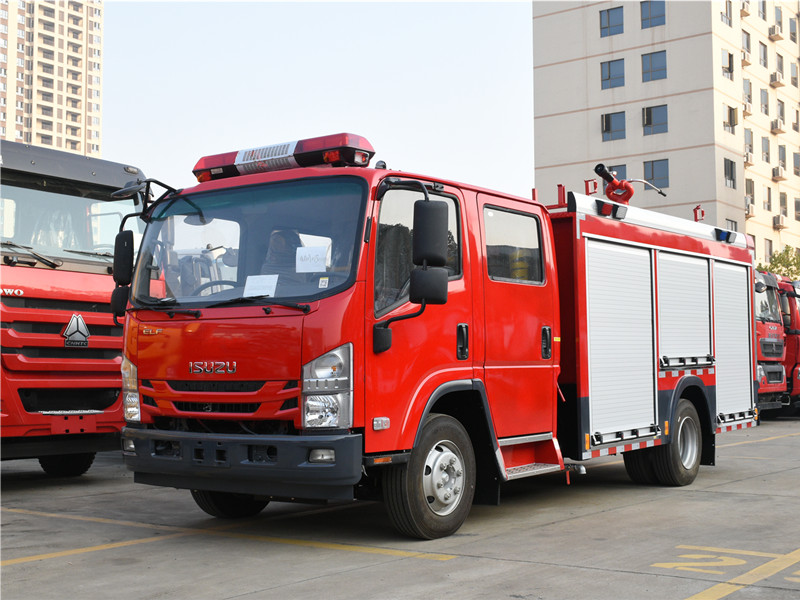

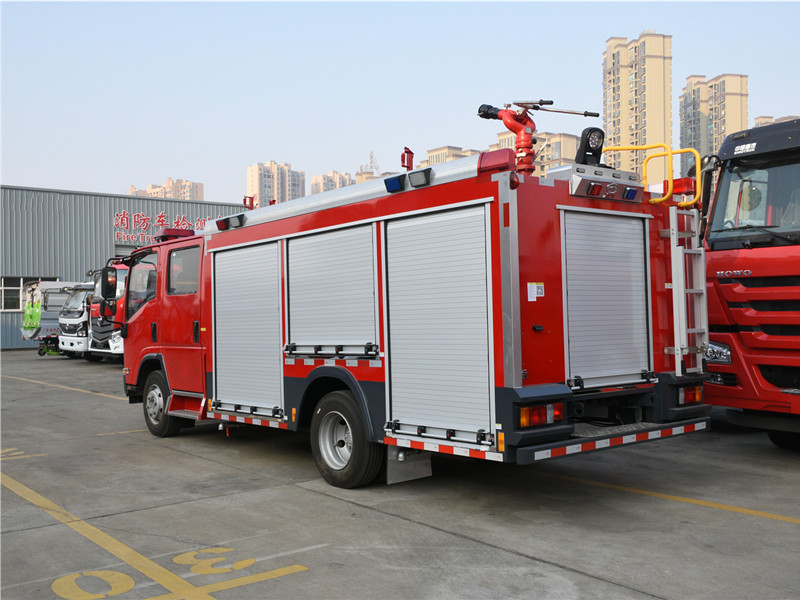

Qingling Isuzu 4t foam fire truck is refitted from Qingling chassis. The vehicle consists of two main parts: the firefighter's cabin and the body. The cabin is converted from a single row to a double row and can accommodate 3+3 people. The vehicle has an exposed tank structure, with an equipment box in the front, a water tank in the middle, and a pump room in the rear. The liquid carrier tank is made of high-quality carbon steel and elastically connected with the chassis. It carries 2500 kg of water and 1500 kg of foam liquid. It is equipped with the CB10/30 low-pressure fire pump produced by Shanghai Rongshen Fire Equipment Co., Ltd. with a rated flow of 30 L/S. The roof is equipped with the PL24 type vehicle fire monitor produced by Chengdu West Fire Machinery Co., Ltd. This car has a large liquid volume, good handling, and easy maintenance. It can be widely used in public security fire brigades, factories, mines, communities, docks and other places to extinguish large oil fires or general substance fires.

Product Name： Qingling Isuzu 4t foam fire truck
Driving Type： 4X2
Total weight（Kg)： 10000(Kg)
Curb weight(kg)： 5550(Kg)

Product Features

Qingling Isuzu 4t foam fire truck

Foam fire truck is a special vehicle equipped with various fire-fighting equipment or extinguishing agents, mainly used for fire fighting and emergency rescue. It consists of a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, and an electrical system. The foam fire truck is suitable for urban public security fire brigade, petrochemical industry, factories and mining enterprises, forests, ports, docks and other departments, especially for petrochemical and other dangerous fire sites.

Product parameters

Product Name	Qingling Isuzu 4t foam fire truck
Driving Type	4X2
Total weight（Kg)	10000(Kg)
Curb weight(kg)	5550(Kg)
Rated weight(kg)	4000(Kg)
Wheel base(mm)	3815(mm)
Overall dimension(mm)	6940×2240×3120(mm)
Engine brand & model	4HK1-TCG60, 205hp
Axle Quantity	2
Transmission Type	6-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	235/75R17.5 16PR,8.25R20 14PR , 6+1 spare
Cab	Qingling Isuzu cab
Extinguishing Media	water/foam/dry-powder
Tank material	Made of high-quality carbon steel material (Q235), welded structure, equipped with longitudinal and anti sway plates, and treated with epoxy anti-corrosion. 304 stainless steel and PP materials can be selected
Tank volume	2.5 ton water+1.5 ton foam
Equipment box	The fire pump is located in the middle or rear of the box, with four water outlets on both sides of the pump room and new high-strength aluminum alloy rolling shutter doors on both sides of the equipment box. The equipment bracket adopts aluminum alloy profiles produced by European technology, with a fully internal hexagonal connection structure manufactured by a concealed tower connection, which is beautiful and durable.
Electrical configuration	The front end of the top of the fire truck cab is equipped with a long row of red warning lights, and a red circular warning light is installed on the top of the rear of the vehicle. There is one 24V and one 60W fire lighting lamp at the front and rear of the roof. The vehicle is equipped with red and blue matching flashing lights on both sides, safety sign lights and side reflectors installed below, front and rear clearance lights, and one turn signal light on each side. Lighting fixtures are installed in the passenger compartment, equipment box, and pump room.
Fire pump model	CB10/30
Fire cannon model	PL24
Fire cannon range	water≥45M, foam≥40m
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
