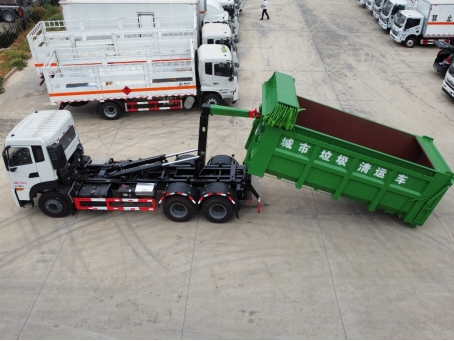

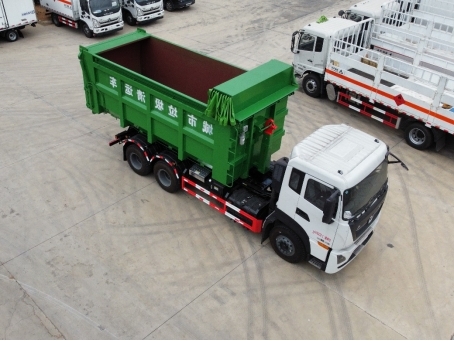

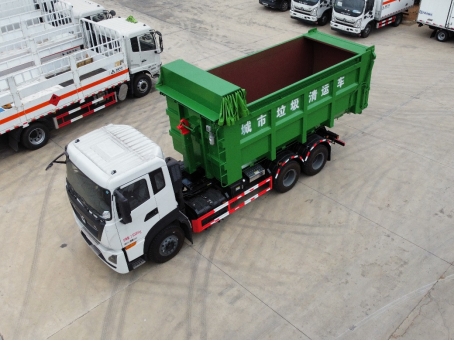

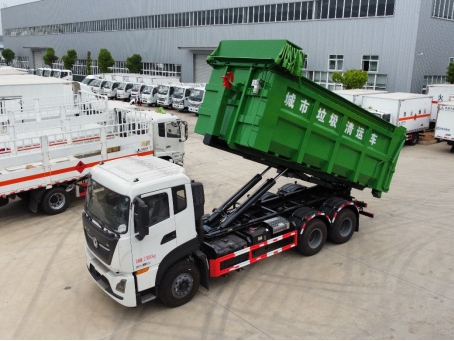

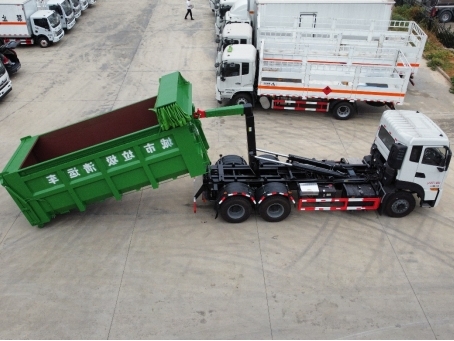

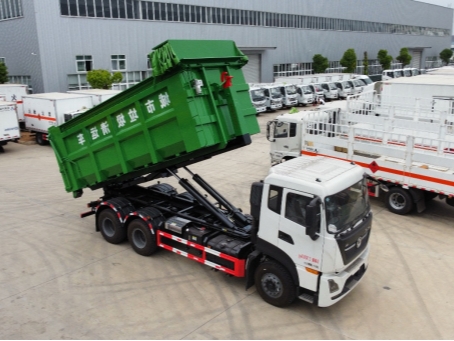

Dongfeng Tianlong 6X4 Hook arm Garbage Truck

Chassis configuration:

Dongfeng Tianlong D320 luxury KL cab, DDI340 horsepower 6-cylinder engine, Shaanxi 9-speed gearbox (high and low gears), 295 vacuum tires, wheelbase 4350+1350mm, axle 5.5T/10T, all steel 350L fuel tank, air conditioning electric doors and windows, remote key, electric flip, multifunctional steering wheel, cruise control, LCD instrument panel, airbag seats. Driving recorder, seat belt reminder, brake pad wear alarm. ABS air brake, directional assist, clutch assist.

Product Name： Dongfeng Tianlong 6X4 Hook arm Garbage Truck
Driving Type： 6X4
Gross vehicle weight(Kg)： 25000(Kg)
Curb weight(Kg)： 11800,12300,12800(Kg)

Product Features

Dongfeng Tianlong 6X4 Hook arm Garbage Truck

Hook arm garbage truck, also known as a detachable garbage truck, is a type of garbage truck. Mainly suitable for collecting and transporting various types of garbage in municipal sanitation, property management, large factories, industrial and mining areas, and other places.
The hook arm garbage truck adopts a fully hydraulic control operating system, and the garbage compartment and chassis can be completely separated. It has the advantages of reasonable structure, easy operation, stability, high efficiency, good sealing performance, and convenient dumping. It can achieve joint operation of one vehicle and multiple garbage compartments, circular transportation, and fully improve the transportation capacity of the vehicle. Can carry multiple boxes in one car, efficient, energy-saving, and cost-effective.

Installation configuration of Dongfeng Tianlong 6X4 Hook arm Garbage Truck
Upper configuration: Dual use flashlight with remote control operation, equipped with rear hydraulic support legs, reinforced large arm (sleeve arm), equipped with a middle plum balance valve, thickened 180 cylinder lifting cylinder, main arm cylinder, movable sleeve arm, sleeve arm cylinder, attached frame, flip frame, hydraulic rear support leg, lateral locking, locking frame, locking cylinder and multi way directional valve, etc. The pull arm has telescopic function, hydraulic lock, Impop gear pump, high-strength precision casting parts, auxiliary beam has brackets on both sides to prevent the box from sliding.

Product parameters

Product Name	Dongfeng Tianlong 6X4 Hook arm Garbage Truck
Driving Type	6X4
Gross vehicle weight(Kg)	25000(Kg)
Curb weight(Kg)	11800,12300,12800(Kg)
Rated weight(kg)	13070,13005,12570,12505,12070,12005(Kg)
Wheelbase(mm)	4350+1350(mm)
Overall Dimension(mm)	8600×2500,2550×3150,3190,3075(mm)
Garbage container size(mm)	××(mm)
Engine brand & model	DDi75E340-60,340hp, 250kw
Axle Quantity	3
Transmission Type	9-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	295/80R22.5 18PR vacuum tire, 10+1 spare
Cab	Dongfeng Tianlong D320 Luxury KL Cab
Garbage container material	High strength Q345 square tube made telescopic arm for the main structure
Standard configuration	Upper configuration: The main structure is made of high-strength Q345 square tube with telescopic arm, reinforced double-layer large arm column, flashlight dual-purpose valve operation, dual hydraulic thickening oil cylinder lifting design, main arm oil cylinder, movable sleeve arm, sleeve arm oil cylinder, attached frame, flip frame, hydraulic rear support leg, locking frame, locking oil cylinder and multi way directional valve. The arm is equipped with telescopic function, balance valve hydraulic lock, English Papu plunger pump, integrated horizontal locking and safety limit installation, high-strength precision casting parts, and auxiliary beam with brackets on both sides to prevent the box from sliding.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
