Liuqi L2 4X2 hook arm garbage truck

Chassis configuration:

Wheelbase: 3360mm
Engine: Authentic Yuchai machine, Yuchai YCY24140-60 (140PS) 140 horsepower
Transmission: Fast 8-speed gearbox
Cab width: 2 meters, with a widened center and comfortable seating for three people
Steel plate spring: 3/6+7
Tire: 7.00R16 steel wire tire
Braking: Pneumatic drum brakes and cut-off brakes are safer
Original air conditioner: Liuzhou Songzhi car air conditioner with high power and fast cooling
Steering wheel: PU multifunctional steering wheel
Rearview mirror: manually adjust electrically heated rearview mirror
Fuel tank: 120L
Other configurations: fixed cab suspension, torsion bar flip, electric glass lifter, remote key+central locking (four locks in one), LCD instrument panel, MP3+radio, air conditioning, laminated glass, ordinary air filter, air brake ABS、 Automatic arm adjustment T-BOX、 Manually adjust the electrically heated rearview mirror, aluminum alloy air reservoir, cruise control, and PU multifunctional steering wheel.




  • Product Name: Liuqi L2 4X2 hook arm garbage truck
  • Driving Type: 4X2
  • Gross vehicle weight(Kg): 4495(Kg)
  • Curb weight(Kg): 3650,3580,3360(Kg)

Product Features

Liuqi L2 4X2 hook arm garbage truck

Hook arm garbage truck, also known as a detachable garbage truck, is a type of garbage truck. Mainly suitable for collecting and transporting various types of garbage in municipal sanitation, property management, large factories, industrial and mining areas, and other places.
The hook arm garbage truck adopts a fully hydraulic control operating system, and the garbage compartment and chassis can be completely separated. It has the advantages of reasonable structure, easy operation, stability, high efficiency, good sealing performance, and convenient dumping. It can achieve joint operation of one vehicle and multiple garbage compartments, circular transportation, and fully improve the transportation capacity of the vehicle. Can carry multiple boxes in one car, efficient, energy-saving, and cost-effective.


Product parameters

Product Name Liuqi L2 4X2 hook arm garbage truck
Driving Type 4X2
Gross vehicle weight(Kg) 4495(Kg)
Curb weight(Kg) 3650,3580,3360(Kg)
Rated weight(kg) 650,720,940(Kg)
Wheelbase(mm) 3360(mm)
Overall Dimension(mm) 5530×2040×2300,2260(mm)
Garbage container size(mm) ××(mm)
Engine brand & model Yuchai 140hp (YCY24140-60)
Axle Quantity 2
Transmission Type FAST 8-speed
Steering Type LHD or RHD with power steering
Brake system Air brake
Tire Spec. & size 7.00R16 steel wire tire, 6+1 spare
Cab 2-meter wide and comfortable body for three people
Garbage container material High strength Q345 square tube made telescopic arm for the main structure
Standard configuration Upper configuration: The main structure is made of high-strength Q345 square tube with telescopic arm, reinforced double-layer large arm column, flashlight dual-purpose valve operation, dual hydraulic thickening oil cylinder lifting design, main arm oil cylinder, movable sleeve arm, sleeve arm oil cylinder, attached frame, flip frame, hydraulic rear support leg, locking frame, locking oil cylinder and multi way directional valve. The arm is equipped with telescopic function, balance valve hydraulic lock, English Papu plunger pump, integrated horizontal locking and safety limit installation, high-strength precision casting parts, and auxiliary beam with brackets on both sides to prevent the box from sliding.
Notice The above information is for reference only, and vehicles can be customized depending on your requirements.

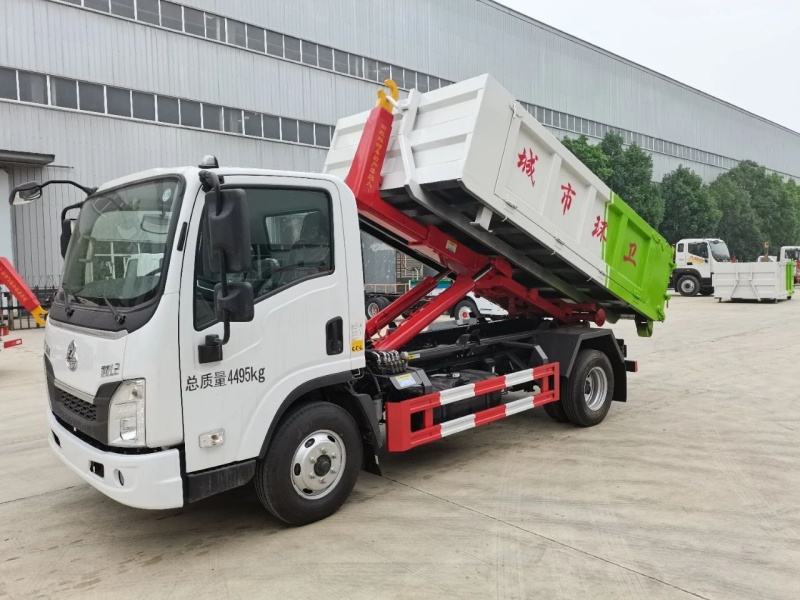

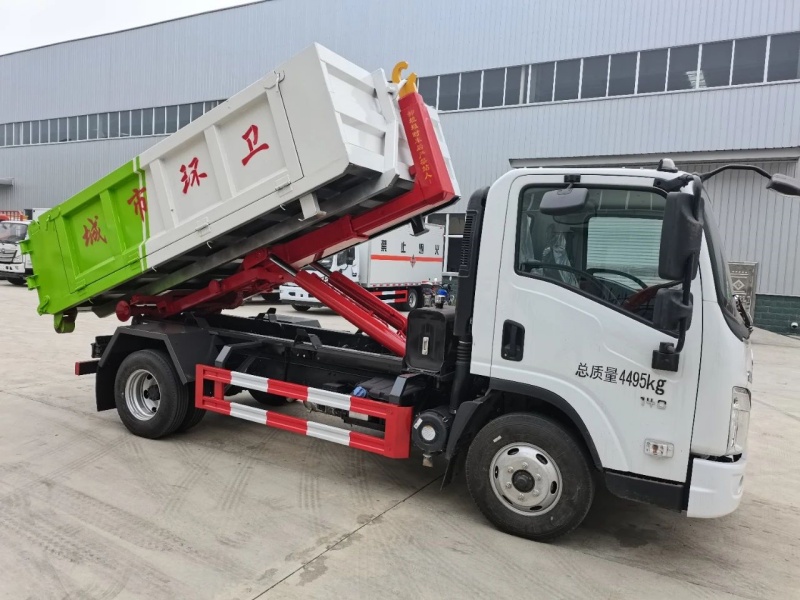

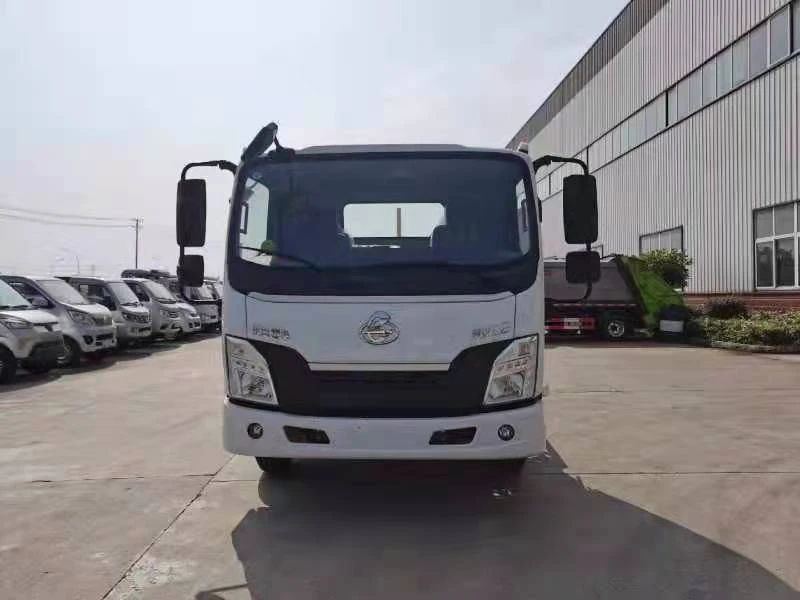

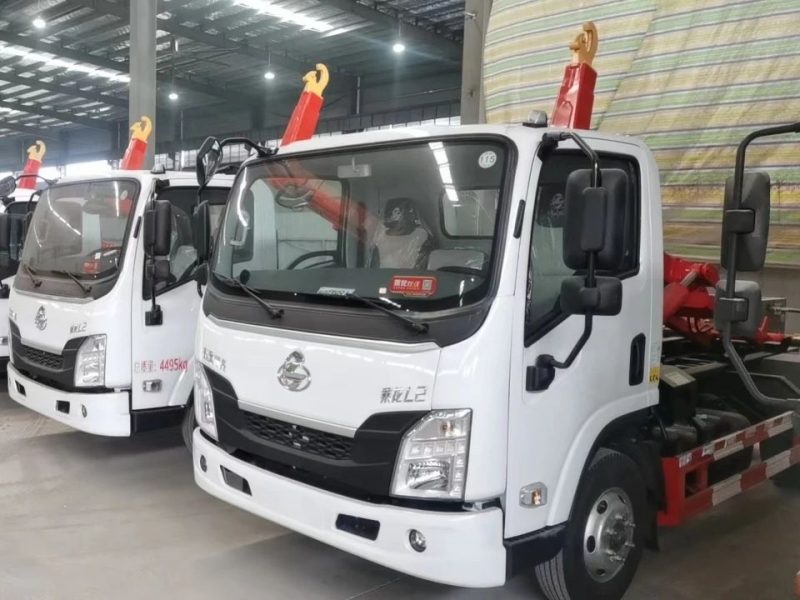

Vehicle pictures

  • View
  • View
  • View
  • View
